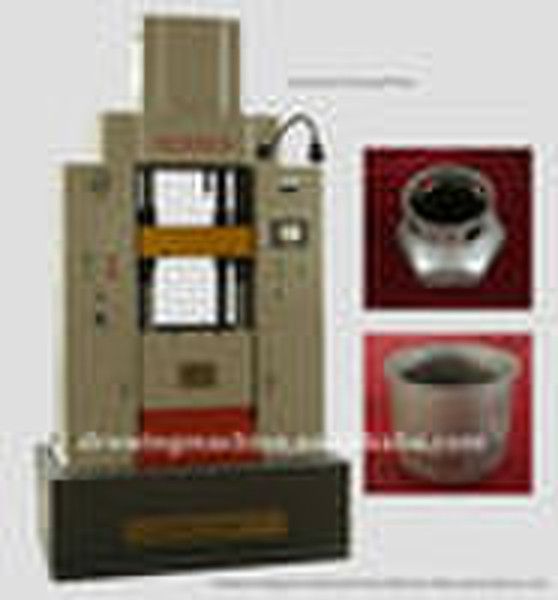

YSA100/330

Special Description:1. Bearing point single and double crank rod slant arrangement locking device2. Equipped with machinery automatic knock-out device 3. Adjustment of feeding force according to the actual thickness of material4. Fast speed of drawing, highly efficient, and without stroke5. A long traveling, fast start and stop molding 6. Effectively increasing pressing and locking force7. The equipped electric motors are low powered 8. All hydraulic parts are supplied by famous brand manufacturers 9. The columns are strong chromate plated, durable and serve long life 10.With photo-electric screen safety protection device Rated pressure: 1000KNWorking pressure: 20.4MpaDeep drawing depth: 0-330mmWorking period: 4-8times/minMax.diameter of metal sheet: φ760 mmMaterial thickness: 0.4-3.5mmWorktable size(L×W):1035×835mmMould screw size: M68×5.5 mmMax.clamping force: 120-240TCentral hole size of pressing plate: φ400Central distance of columns: 850×650 mmMotor power: 18.5KWMachine net weight: 7000kgsMachine dimension (L×W×H): 2100×1450×3650 mm
