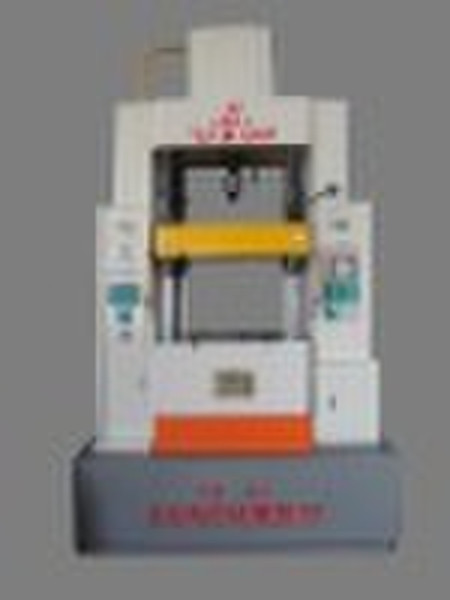

YSA120/330

Special Description:1. Bearing point single and double crank rod slant arrangement locking device 2. Equipped with machinery automatic knock-out device 3. Adjustment of feeding force according to the actual thickness of material 4. Fast speed of drawing, highly efficient, and without stroke 5. A long traveling, fast start and stop molding 6. Effectively increasing pressing and locking force 7. The equipped electric motors are low powered 8. All hydraulic parts are supplied by famous brand manufacturers 9. The columns are strong chromate plated, durable and serve long life 10.With photo-electric screen safety protection device Rated pressure: 1200KNWorking pressure: 19.5MpaDeep drawing depth: 0-330mmWorking period: 5-9times/minMax. diameter of metal sheet: φ865 mmMaterial thickness: 0.5-4.0mmWorktable size(L×W):1145×935mmMould screw size: M68×5.5 mmMax. clamping force: 120-240TCentral hole size of pressing plate: φ500Central distance of columns: 960×750 mmMotor power: 22KWMachine net weight: 8800kgsMachine dimension (L×W×H):2300×1520×3850 mm
