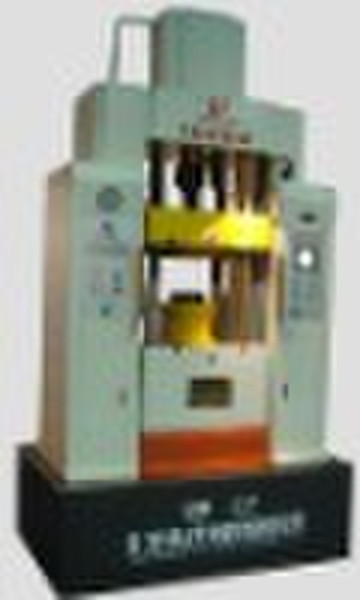

YSA80/304 hydraulic deep drawing press

1. Bearing point single and double crank rod slant arrangement locking device 2. Equipped with machinery automatic knock-out device 3. Adjustment of feeding force according to the actual thickness of material 4. Fast speed of drawing, highly efficient, and without stroke 5. A long traveling, fast start and stop molding 6. Effectively increasing pressing and locking force 7. The equipped electric motors are low powered 8. All hydraulic parts are supplied by famous brand manufacturers 9. The columns are strong chromate plated, durable and serve long life 10.With photo-electric screen safety protection device Rated pressure: 800KNWorking pressure: 21.1MpaDeep drawing depth: 0-304mmWorking period: 6-9times/minMax.diameter of metal sheet: φ580 mmMaterial thickness: 0.4-3mmWorktable size(L×W):805×685mmMould screw size: M55×5 mmMax. clamping force: 80-150TCentral hole of pressing plate: φ360Central distance of columns: 660×540 mmMotor power: 18.5KWMachine net weight: 5200kgsMachine dimension (L×W×H): 1820×1300×2360 mm
